ThermocoupleThermocouple

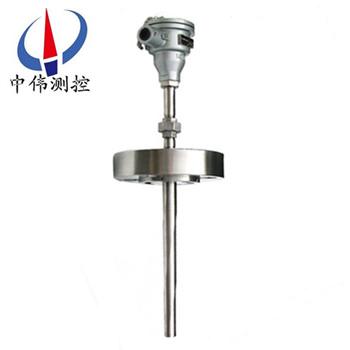

High temperature and high pressure thermocouple

WRNG-430 series High temperature and high pressure thermocouple The measurement and control of tempe…

Description：

、產品概述：">Productoverview:
WRNG-430 series High temperature and high pressure thermocouple 、化工等生產過程中的高溫高壓場所的溫度測量與控制

。">The measurement and control of temperature of high temperature and high pressure place suitable for petroleum and chemical industries in the production process.、高壓聚乙烯等不可缺少的溫度裝置

。">Temperature is an indispensable device for oil refineries, high-pressure polyethylene etc..
、">Two, Working principle：
WRNG-430 series High temperature and high pressure thermocouple ，構成一個閉合回路。">Is the welding of two different material a conductor or semiconductor A and B together to form a closed loop. ，兩者之間便產生電動勢,因而在回路中形成一個大小的電流,這種現象稱為熱電效應

。">When two points of attachment conductor A and B 1 and 2 between the temperature difference between the two, will produce electromotive force, thus forming a size of the current in the circuit, this phenomenon is called the thermoelectric effect. Thermocouples use this to work.
、">3, Thermocouple type:
WRNG-430 series High temperature and high pressure thermocouple 。">Can be divided into standard thermocouple and non standard thermocouple two categories. 、并有統一的標準分度表的熱電偶

，它有與其配套的顯示儀表可供選用。">The so-called standard thermocouple refers to the national standard, the relationship between the thermal potential temperature and allowable error, and indexing table standard thermocouple, which shows its supporting instrument available. ，一般也沒有統一的分度表

，主要用于某些特殊場合的測量。">Non standard thermocouple in the range of use or magnitude are not standardized thermocouple, in general there is no unified indexing table, mainly used for measuring some special occasions. ，并指定S

、R、B

、K、N、E

、J

、T八種標準熱電偶為統一設計型熱電偶。">Standard thermocouple according to IEC international standard production, and designated S, R, B, K, N, E, J, T eight standard thermocouple thermocouple for unified design.

、性能特點：">Four, performance characteristics:

、測量精度高。">1, high precision measurement. 。">Thanks to direct contact with the object, is not affected by the intermediate medium.

、測量范圍廣。">2, wide measuring range. ，某些特殊熱電偶zui低可測到-269℃（如金鐵鎳鉻）

。">The commonly used thermocouple from -50~+1100 C can be continuous measurement, some special thermocouple Zui low detectable -269 C (such as gold iron nickel chromium).

，使用方便

。">3, simple structure, convenient use. ，外有保護套管

，用起來非常方便。">A thermocouple is usually composed of two different metal wires, and the limitation of size and opening, with protective sleeve, it is very easy to use.

、">Five, Technical parameters:
、電氣出口：M20x1．5,NPT1/2；">1: M20x1.5, NPT1/2, electrical outlet;
、連接尺寸：M20x1．5, NPT1/2

；">2: M20x1.5, NPT1/2, connecting dimensions;
；">3, protection grade: IP65;
、隔爆等級：d‖BT4, d‖CT5；">4, every burst: D "BT4, D, CT5;
、公稱壓力：15-40MPa

。">5, nominal pressure: 15-40MPa.
Six, Structural requirements:
、組成高溫高壓熱電偶的兩個熱電極的焊接須***牢固

；">Two, high temperature and high pressure thermocouple thermoelectric 1 pole welding must be strong;
，以防短路

；">Good insulation should be between 2, a power pole each other in case of short circuit;
；">3, the free end of the thermocouple compensation wire and connected to the convenient and reliable;
、保護套管應能保證熱電極與有害介質充分隔離

。">4, to protect the casing should be able to guarantee the thermode fully isolated from harmful medium.
Seven, The protection and selection of pipe material:

Texture of material	The use of temperature	Characteristic and Application
1Cr18Ni9Ti	-200 - 800	，通常為一般耐熱鋼使用">High temperature corrosion resistance, usually the general use of heat resistant steel
Three hundred and four	-200 - 800	，具有良好耐晶間腐蝕性，通常作為一般耐熱鋼使用">Low carbon content, with good resistance to intergranular corrosion, usually as a general use of heat resistant steel
Three hundred and sixteen	-200 - 750	，具有良好耐晶間通常作為耐熱鋼使用">Low carbon content, has good resistance to intergranular heat-resistant steel used as usual
316L	-200 - 750	，具有良好耐晶間腐蝕性，通常作為耐熱鋼使用">Ultra low carbon content, with good resistance to intergranular corrosion, usually used as heat resistant steel
310S	-200 - 1000	，耐腐蝕性，通常作為耐熱鋼使用">High temperature oxidation resistance, corrosion resistance, heat-resistant steel used as usual
GH3030	0 - 1100	，耐腐蝕性，通常作為耐熱鋼使用">Nickel based high temperature alloy steel has excellent oxidation resistance, corrosion resistance, heat-resistant steel used as usual

8, Casing type selection:
。">The flange can choose 900 (PN15) - 2500LB (PN40) RJ in different forms.

Code	N	M	D	D	D1	D2
A	M20x1.5 (NPT1/2)	NPT1 "	Phi 34	Phi 9	Phi 23	Phi 18
B	M20x1.5 (NPT1/2)	NPT11/4 "	Phi 45	Phi 9	Phi 28	Phi 23

、">Nine, Flange standard code:

Standard code	Document number
China national standard	GB9112-9131-88
China Ministry of chemical industry standard	HG20592-20635-97(HGJ44-76-91)(HG5001-5028-58)
China standard of machinery	JB/T74-90-94(JB81-82-59)
American Standard	ASME/ANSI B16.5-88
German standard	DIN 2628-2638-1975
Japan standard	JIS2201-1796

Ten, Type and specification table:

Model	Graduation	The measuring range of C	Thermal response time	Protection tube material	Specification Lxl
WRNG-430WRN2G-430	K	0-800	< 180S	1Cr18Ni9Ti	380x150430x200480x250530x300580x350630x400680x450
WREG-430WRE2G-430	E	0-600
WRNG-440WRN2G-440	K	0-800
WREG-440WRE2G-440	E	0-600

、">Note: 1, Thermocouple ；">I according to the ordering protocol;
2, the protection tube materials according to ordering protocol
、型號 430 為防水式

，型號440為隔爆式。">3, the model 430 is waterproof type, type 440 for flameproof type.
、">Eleven, Design selection and ordering information:
、型號；">1, model;
、分度號

；">2, division no.;

；">3, precision grade;

、保護管材質及形式；">4, protection tube material and form;

、法蘭規格及形式

；">5, the flange specifications and forms;

。">6, the length or depth of insertion.
Customer service service commitment:

、我公司所售中偉">1, my company sold Zhongwei Thermocouple series

。">The product within twelve months of quality problems, responsible for free maintenance.

、質保期內如我公司產品出現任何質量問題

，我公司負責免費維修或更換。">2, the warranty period if the products of our company have any quality problems, our company is responsible for free repair or replacement.
、質保期內如用戶使用不當

，造成產品損壞，我公司負責維修

，收取損壞部件成本費。">3, the warranty period if the user use undeserved, cause damage to the product, our company is responsible for the maintenance, collect the damaged parts cost.
、質保期后產品出現質量問題

，我公司負責維修，收取損壞部件成本費

。">4, after the warranty period of product quality problems, our company is responsible for the maintenance, collect the damaged parts cost.
、如用戶需我公司現場服務，對省內用戶我公司服務人員12小時內到達現場

，省外用戶48小時內到達現場

。">5, if the user needs to our service, our company in the province of the user service personnel arrived at the scene within 12 hours, arrived at the scene 48 hours outside users.
